ESG-5.1
A Grip+ Solution
ESG-5.1
Gripper with vacuum cups designed for handling pouched and boxed products, suitable for consumer goods packing, palletizing and depalletizing. Compared to ESG-5.2, this gripper has a wider gripping range.
Features
Reconfigurable
Able to handle objects with a wide range of sizes and shapes with just one single gripper
Eliminate human operator
Integrable with our computer vision system for a fully automated pick-and-place process
Universality
Compatible with most robotic arm brands in the market with easy plug-and-play feature
Specifications
| Product Weight | 2.18 kg |
| Gripping Width | 125 mm – 315 mm |
| Manipulating Weight | Up to 7 kg |
| Gripping Mode | Vacuum suction |
| Actuation Method | Clean, dry air up to 250 kPa |
| Recommended Operating Pressure | -75kPa |
| Operating Temperature | Up to 100 °C |
Applications
● Boxes Picking
● Pouched Products Picking
● Palletizing and depalletizing

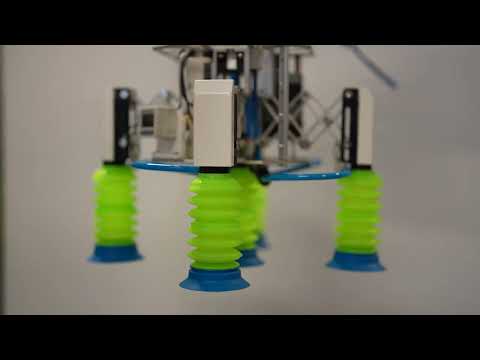

Pouch Picking
Box Picking
Pouch and Box Picking (Old Version Gripper)
Have other applications that want a demo?
